Marrakesh is the fourth largest city in Morocco, Marra is my Bike Touring and city-commuter bike.
The Marrakesh Deore is purpose built for world touring and rugged exploration. It features Shimano Deore drivetrain components for proven performance on long rides, and is designed to be fully loaded. The drop bars provide more upright and relaxed riding position on the tops or hoods for all-day comfort over varied road surfaces, as well as aerodynamic benefits. It’s equipped with a bevy of attachment points for endless mounting options, and is predictable and durable. Wherever your travels take you, Marrakesh is ready to pile on the miles.

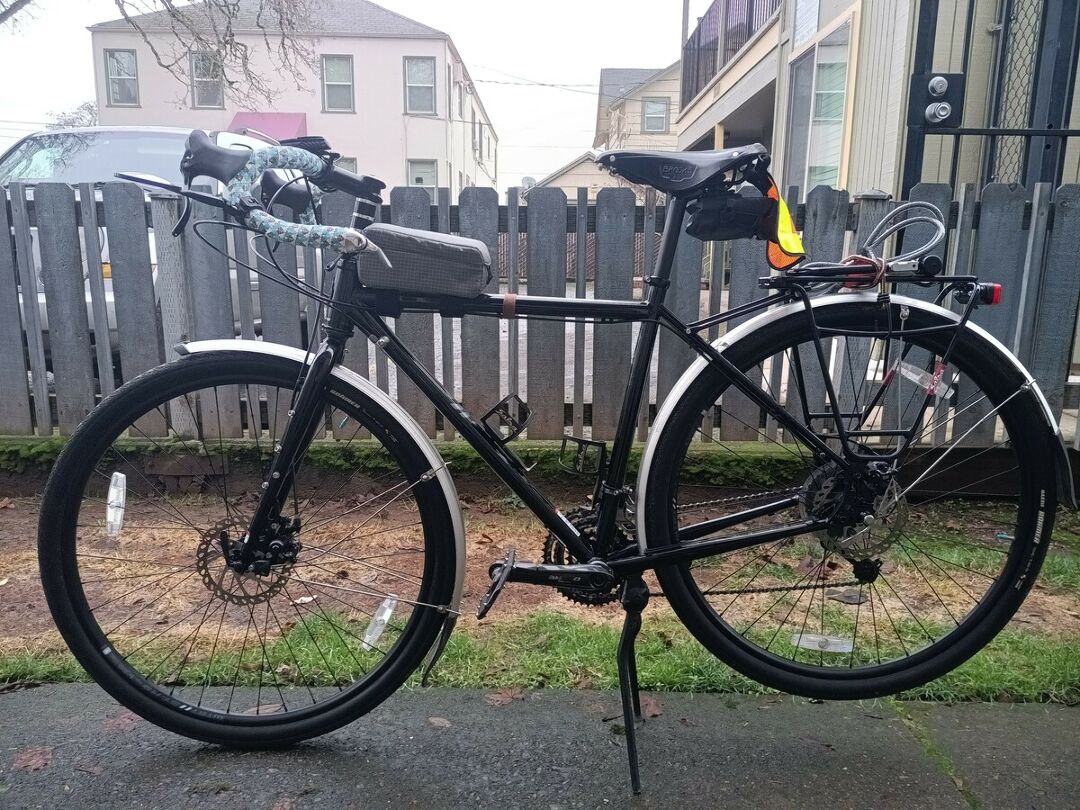

Current build
Serial # M21100235
54cm frame
Low deck rack with mounting points ~3 inches below the top of the rack
Front fork which can have racks or bottle cages mounted on them
Components:
shimano deore drivetrain
shimano bar-end shifters
silver fenders
Maxxis Roader tires
shimano deore drive train

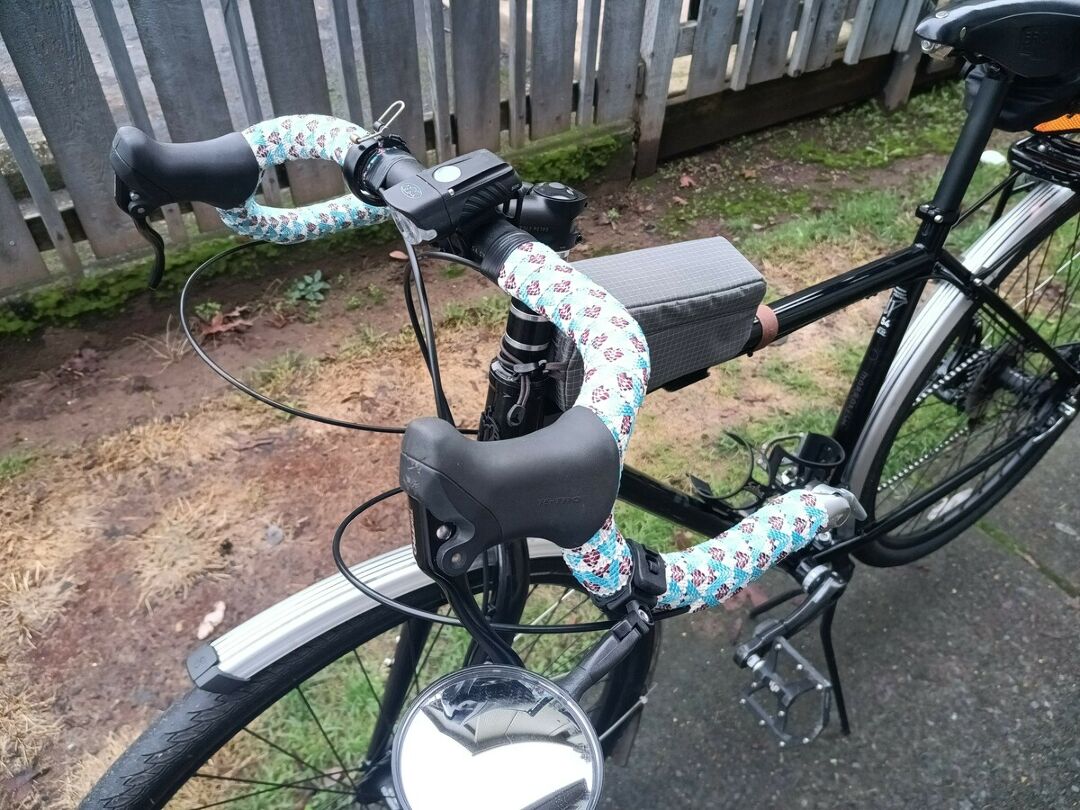

blue/white/red woven bar tape from BTP
blue stem caps
brookes b-17
wahoo sensors on left crank and rear wheel hub.
nice kickstand
registered to bikeindex@rix.si on bikeindex)
In late 2022, I had Marra rebuilt around a 54cm Marrakesh frame.
Work I wanna do on the bike
NEXT map out all the gear ratios
Shimano 3x9
Shimano Deore, 48/36/26t
Shimano Alivio HG300, 11-34t
| G | T | Small | Middle | Large |
| - | - | 26 | 36 | 48 |
| 1 | 11 | 2.364 | 3.273 | 4.364 |
| 2 | 13 | 2.000 | 2.769 | 3.692 |
| 3 | 15 | 1.733 | 2.400 | 3.200 |
| 4 | 17 | 1.529 | 2.118 | 2.824 |
| 5 | 20 | 1.300 | 1.800 | 2.400 |
| 6 | 23 | 1.130 | 1.565 | 2.087 |
| 7 | 26 | 1.000 | 1.385 | 1.846 |
| 8 | 30 | 0.867 | 1.200 | 1.600 |
| 9 | 34 | 0.765 | 1.059 | 1.412 |
So if i'm in the smallest rear and the biggest front, i'll have 4.36 tire turns for every crank turn. If I'm in the largest rear and smallest front, the bike's tire will turn 75% of a rotation for each rotation of the crank.
NEXT swap to black fenders
all black everything with a handful of color accents on it
